DYNODRIVE 9

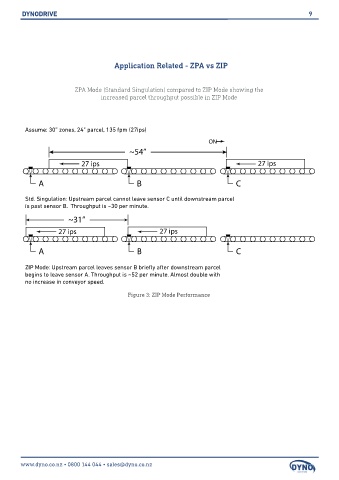

Application Related - ZPA vs ZIP

ZPA Mode (Standard Singulation) compared to ZIP Mode showing the
increased parcel throughput possible in ZIP Mode

Assume: 30” zones, 24” parcel, 135 fpm (27ips)
ON
~54”

27 ips 27 ips

A B C

Std. Singulation: Upstream parcel cannot leave sensor C until downstream parcel
is past sensor B. Throughput is ~30 per minute.

~31”

27 ips 27 ips

A B C

ZIP Mode: Upstream parcel leaves sensor B briefly after downstream parcel
begins to leave sensor A. Throughput is ~52 per minute. Almost double with
no increase in conveyor speed.

Figure 3: ZIP Mode Performance
